OPPO Find X3 Pro - Specifications

OPPO Find X3 Pro
(CPH2173)

1 Billion Colour Dual Primary Cameras

1 Billion Colour Display

10-bit Full-path Colour Engine

Futuristic Curved Design

65W SuperVOOC Flash Charge

Qualcomm^® Snapdragon™ 888 Mobile Platform

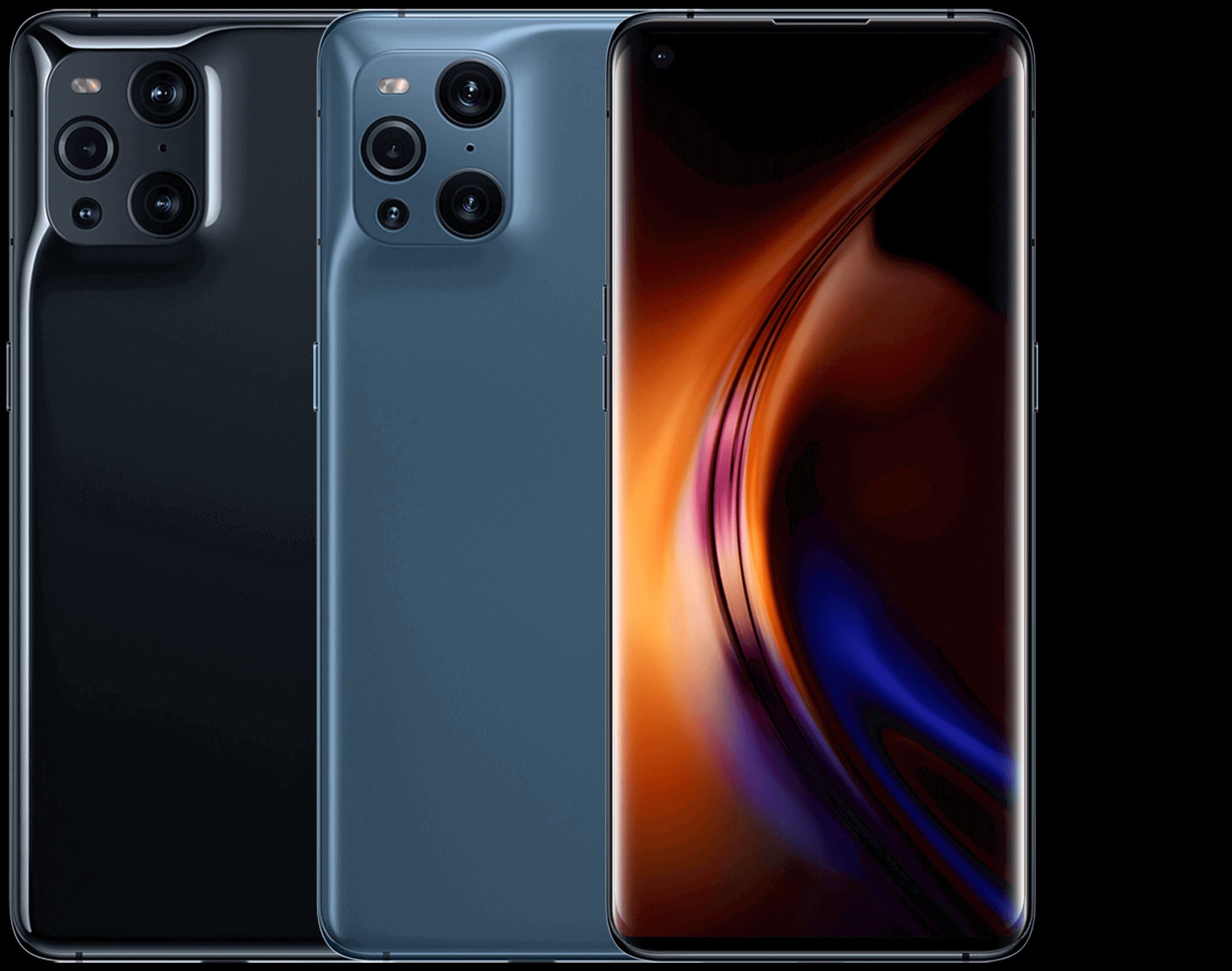

Gloss Black (Glossy glass) | Blue (AG glass)

* Product pictures are for reference only. Please refer to the actual product.

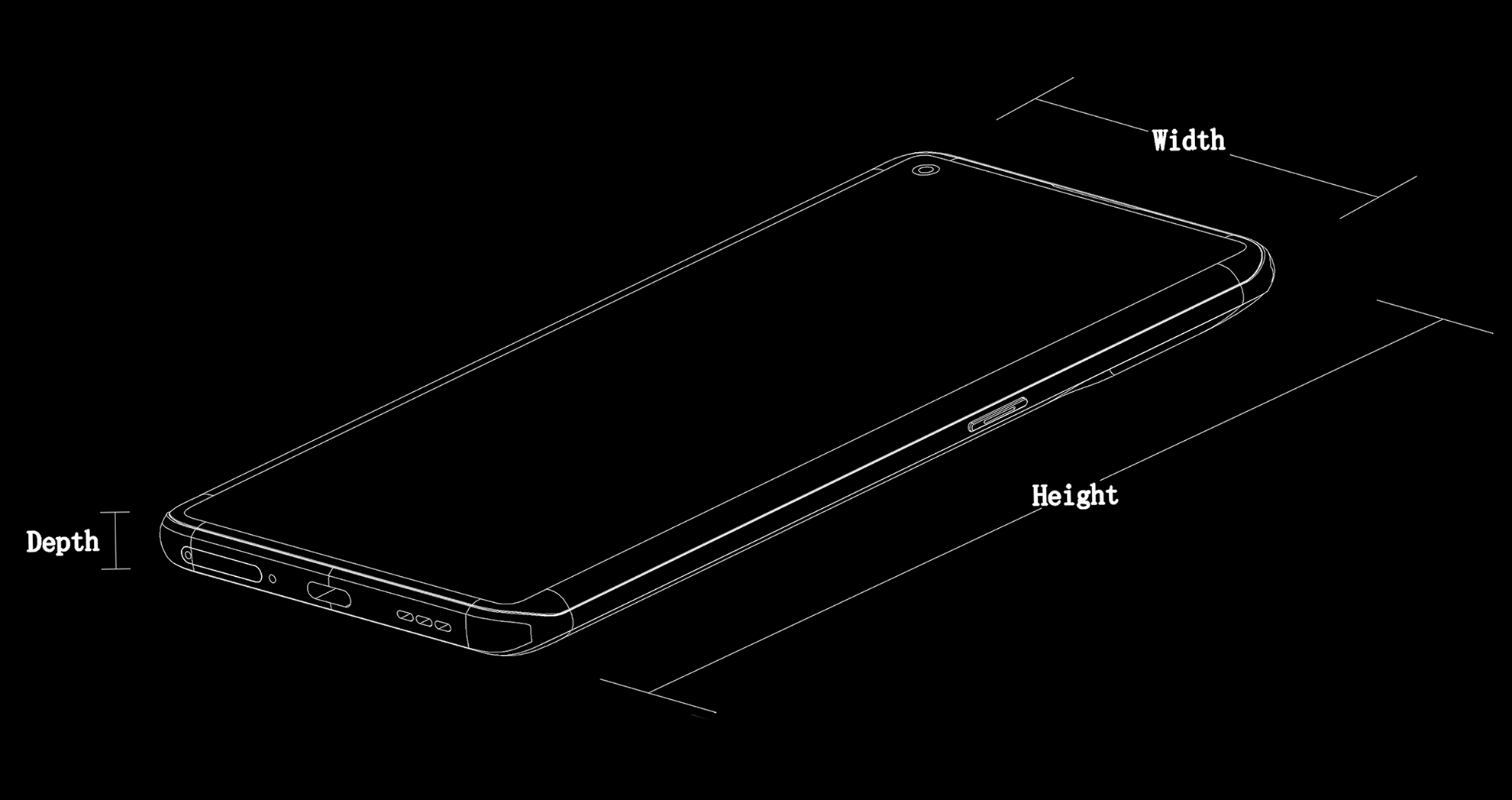

Size and Weight

Height: about 163.6mmWidth: about 74.0mmDepth: about 8.26mmWeight: about 193g*Note: Phone weight may vary slightly depending on the product configurations, manufacturing process, and measurement method.

Memory

12GB RAM + 256GB ROM RAM Type: LPDDR5 @ 3200 MHz 4 x 16 bits ROM Type: UFS3.1 @ 2Lanes HS-Gear4 External Memory: Not supported USB Version: USB 3.1 USB OTG: Supported * The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

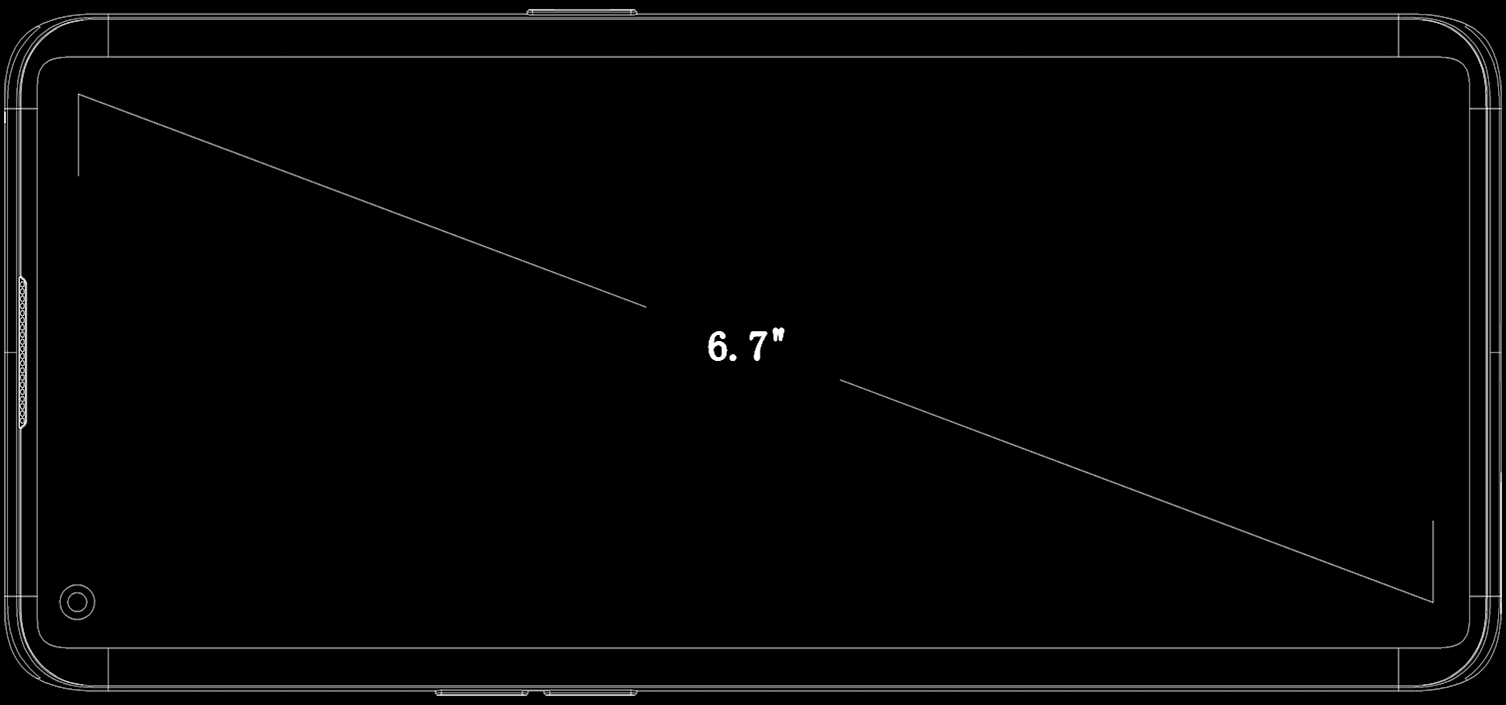

Size: 6.7" (17.02cm) Screen Ratio: 92.7% Resolution: 3216 x 1440 (QHD+) Refresh Rate: 120 Hz (Max) or 60 Hz Touch Sampling Rate: Maximum: 240 Hz (2 fingers) / Default: 120 Hz (10 fingers) Colour Gamut: Vivid mode: 97% NTSC/100% DCI-P3 (Typical) / Gentle mode: 71% NTSC/100% sRGB (Typical) / Cinematic mode: 97% NTSC/100% DCI-P3 (Typical) / Brilliant mode: 104% NTSC/100% DCI-P3 (Typical) Pixel Density: 525 PPI Contrast Ratio: Static contrast ratio (Max): 5,000,000:1 (Typical) / Dynamic contrast ratio (Max): 12,000,000:1 (Typical) Brightness: Default peak brightness (typical) measured when the full screen is illuminated: 500 nits
Peak brightness (typical) measured with increasing excitation intensity: 800 nits
Peak brightness (typical) measured when only part of the screen is illuminated: 1300 nits
Brightness level (Max): 8192 Panel: AMOLED (Soft/LTPO)

Camera

Rear 50MP Wide-angle Camera: Sony IMX 766 sensor, 1/1.56" sensor size, f/1.8 aperture, OIS, All Pixel Omni-directional PDAF 50MP Ultra-wide-angle Camera: Sony IMX 766 sensor, 1/1.56" sensor size, f/2.2 aperture, Native 110.3° Field of View, All Pixel Omni-directional PDAF 13MP Telephoto Camera: f/2.4 aperture, 5x hybrid optical zoom, 20x digital zoom 3MP Microlens Camera: 60x magnification, FHD Video Recording, f/3.0 aperture

Front 32MP, f/2.4, FOV 81°, 5P lens

Shooting Mode Rear:
Photo, Night, Video, Portrait, Dual-view video, Slo-motion, Time lapse, Movie, Expert, Panorama, Text scanner, Microscope, Sticker, and Google Lens Front:
Photo, Video, Portrait, Night, Dual-view video, Time lapse, Panorama, and Sticker

Image Size Rear:
Maximum size: 6144 x 8192 (50 MP)
Photo sizes in different aspect ratios:
3072 x 4096 (4:3)
3072 x 3072 (1:1)
1834 x 4096 (full screen)
2304 x 4096 (16:9) Front:
Front camera: 6560 x 4928 (32 MP)
Normal photo mode:
4928 x 6560 (4:3)
4928 x 4928 (1:1)
2940 x 6560 (full screen)
3696 x 6560 (16:9)

Video

RearRear camera: up to 4K (60fps/30fps), 1080P (60fps/30fps), and 720P (60fps/30fps)Video slo-mo: 1080P (240fps), and 720P (480fps) Video stabilisation: 4K (30fps/60fps), EIS, 1080P, 720P Video zoom: 4K (30fps), 1080P (60fps/30fps), 720P (60fps/30fps)

FrontSupports 1080P/720P (30fps) (Default: 1080P (30fps)) (Beautification is turned on by default in some regions.)Supports video stabilisation at 1080P/720P (30fps)Does not support zoom or slow motion

Chipsets

CPU: Qualcomm^® Snapdragon™ 888 Mobile PlatformCPU Speed: 1 x 2.842 GHz/ 3 x 2.419 GHz/ 4 x 1.786 GHzCPU Cores: 8 coresGPU Model: Adreno™ 660

Battery

2200 mAh/17.02 Wh (min) 2250 mAh/17.41 Wh (typ) * Note:
Two series-connected cells, equivalent to a total capacity of 4500mAh

Fast ChargeSuperVOOC 2.0/SuperVOOC/VOOC 3.0/PD
(9 V/2 A)/QC (9 V/2 A)/PPS (30W)

Biometrics

Supports Fingerprint Unlock and Face Recognition Unlock

Sensors

Geomagnetic sensorAmbient light sensorColour temperature sensorProximity sensorAccelerometerGravity sensorGyroscopePedometer

Cellular Network

SIM 2: SupportedSIM Card Type: Nano-SIM* eSIM support depends on carriers
Regions that do not support dual SIM cards:
Australia (Telstra and Optus), Japan (KDDI)
* Functions available on the live network depend on the situations of carrier's network and related services deployment.

SIM Card 1 & SIM Card 2 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/2/4/5/6/8/19 4G: TD-LTE bands 34/38/39/40/41(194Mhz: 2496MHz—2690MHz)/
42 4G: LTE FDD bands 1/2/3/4/5/7/8/
12/13/17/18/19/20/25/26/28/32/66 4G+: TD-LTE: B38C/B39C/B40C/
B41C/B42C/B40D/B41D/etc. 4G+: LTE FDD: B1C/B3C/B7C/B1A+B3A/B1A+B3A+B5A/B1A+B5A/B3A+B5A/B1A+B8A/B3A+B8A/B1A+B3C/B3A+B41A/B8A+B41A/etc. 5G NR: n1/n3/n5/n7/n8/n20/n28/
n38/n40/n41/n77/n78/n79

Connectivity

WLAN: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11a/b/g/n/, Wi-Fi 2.4G/5.1G/5.8G Supports Wi-Fi Display, Wi-Fi tethering, and Simultaneous Dual Band (Wi-Fi 2.4 GHz 2×2 + Wi-Fi 5 GHz 2×2); supports Wi-Fi 5 GHz 160 MHz Supports 2×2 MIMO and 8 spatial-stream sounding MU-MIMO

Bluetooth Version: Bluetooth 5.2Bluetooth Audio Codec: SBC, AAC, APTX HD, LDAC, APTX, APTX TWS+, and LHDCUSB Interface: Type-CEarphone Jack: Type-CNFC: Supported

Operating System

ColorOS 11.2 based on Android 11

Location Technology

Built-in GPS, A-GPS, BeiDou Navigation Satellite System, GLONASS, and QZSS positioning systemsFrequency Antenna: GPS: L1 + L5, Galileo: E1 + E5a, BeiDou B1l + B1C + B2A, and QZSS: L1 + L5Others: Wi-Fi positioning, network-based mobile positioning, and electronic compassMaps: Google Maps and other third-party map apps

In the box

Phone x1Charger x1Earphone x1USB Data Cable x1SIM Ejector Tool x1Safety Guide x1Quick Start Guide x1Protective Case x1Exclusive Service Card x1

Additional Remarks

A special technology is applied to conceal the proximity sensor on the upper front of OPPO's smartphone for the whole look of simplicity. It may cause abnormality of proximity function if the film or protector covers the proximity sensor area. Refer to OPPO's official layout of protector and film for details.

Download Layout
