OPPO A74 5G - Specifications

OPPO A74 5G
(CPH2197)

Qualcomm^® 5G SoC

5000mAh Mega Battery

90Hz Hyper-colour Screen

18W Fast Charge

6+128GB Storage

48MP AI Quad Camera

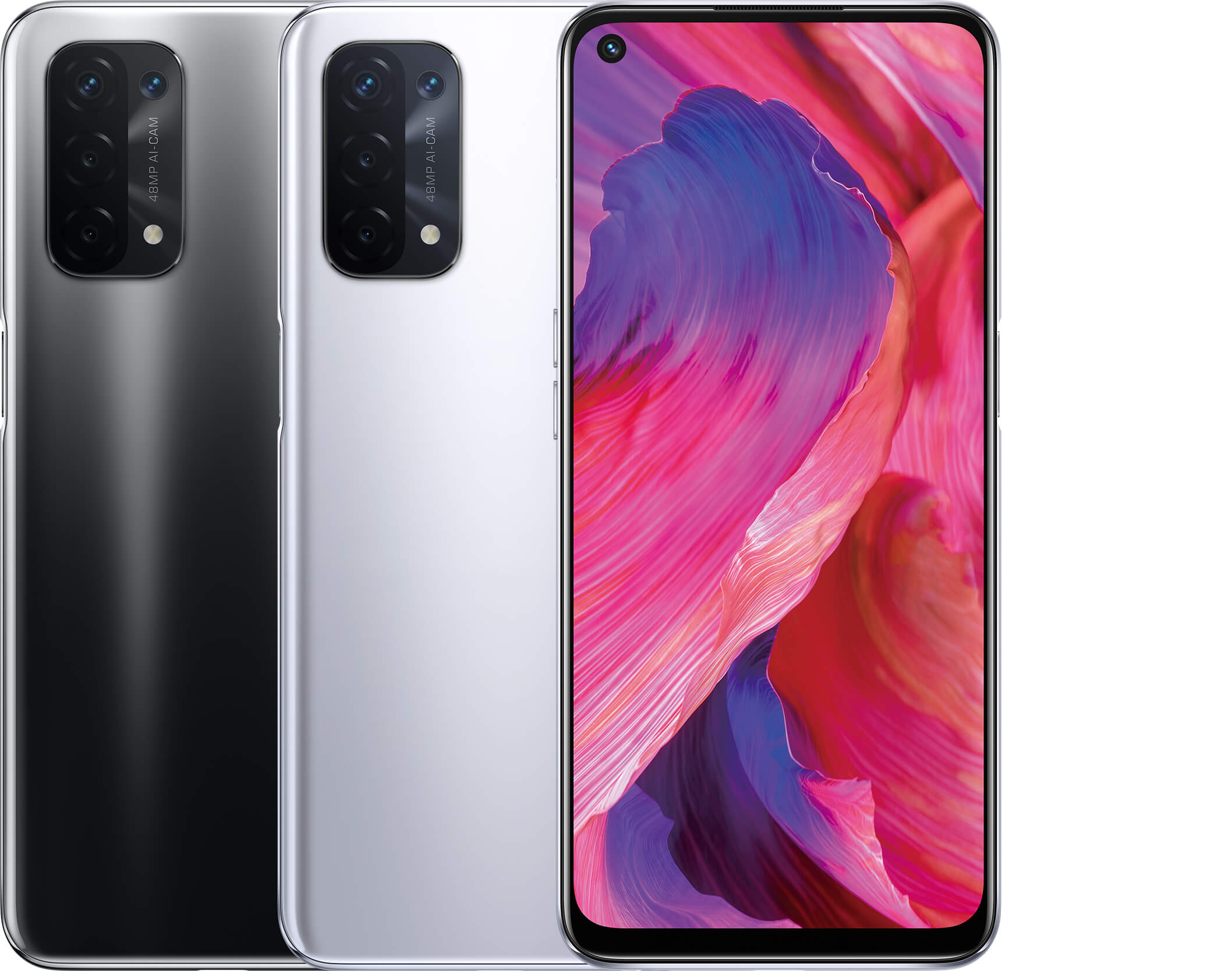

Fluid Black | Space Silver

* Product pictures are for reference only. Please refer to the actual product.

* 5G network connection depends on whether the SIM card supports 5G network, and it also depends on the 5G frequency band and 5G network construction in users' location.

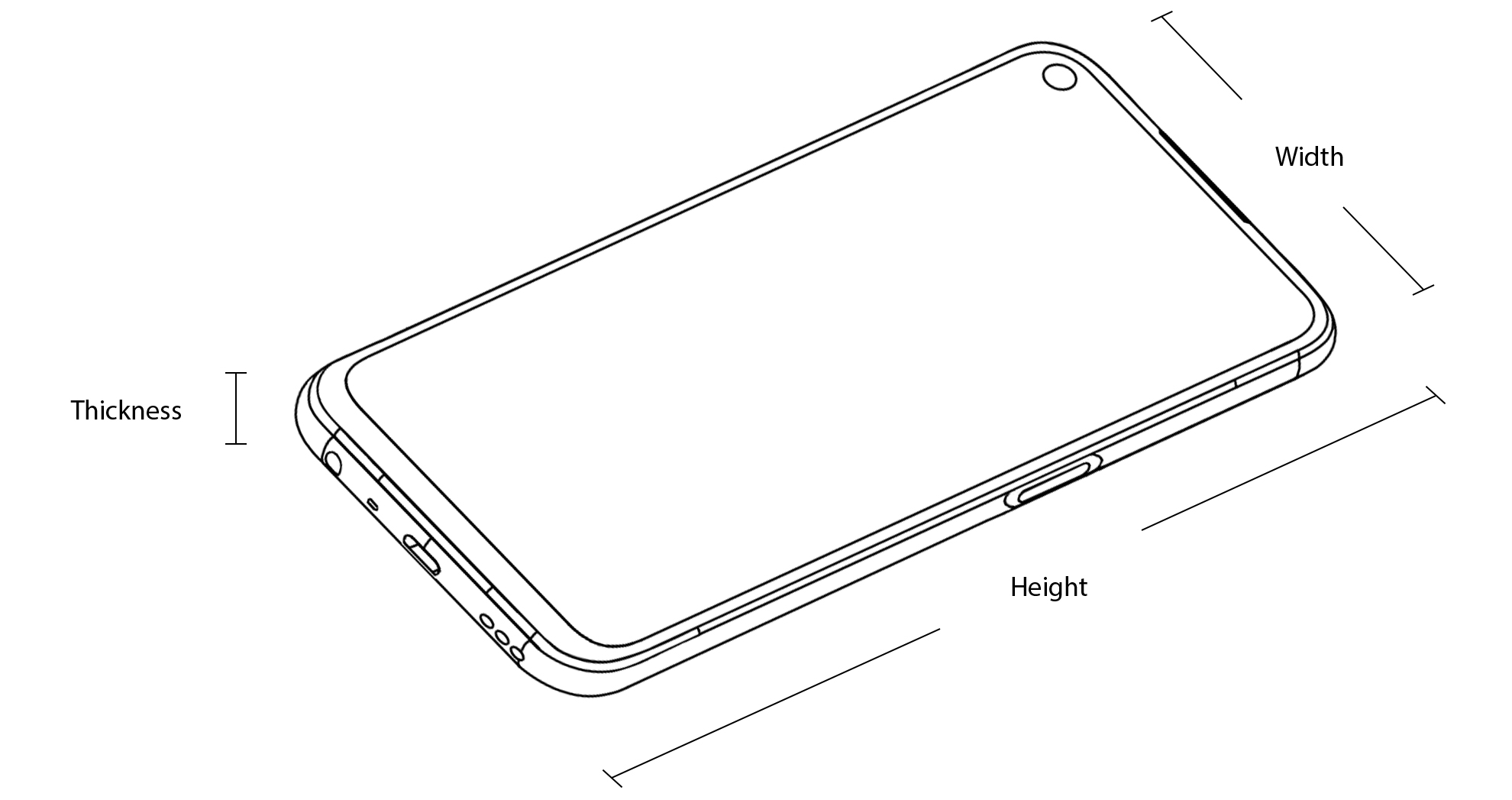

Size and Weight

Height: about 162.9mmWidth: about 74.7mmThickness: about 8.4mm Weight: about 190g * Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Memory

6GB RAM +128GB ROM RAM Type: LPDDR4X @ 2133 MHz 2 x 16 bits ROM Type: UFS 2.1 @ 1lane External Memory: Supported USB Version: USB 2.0 USB OTG: Supported * The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

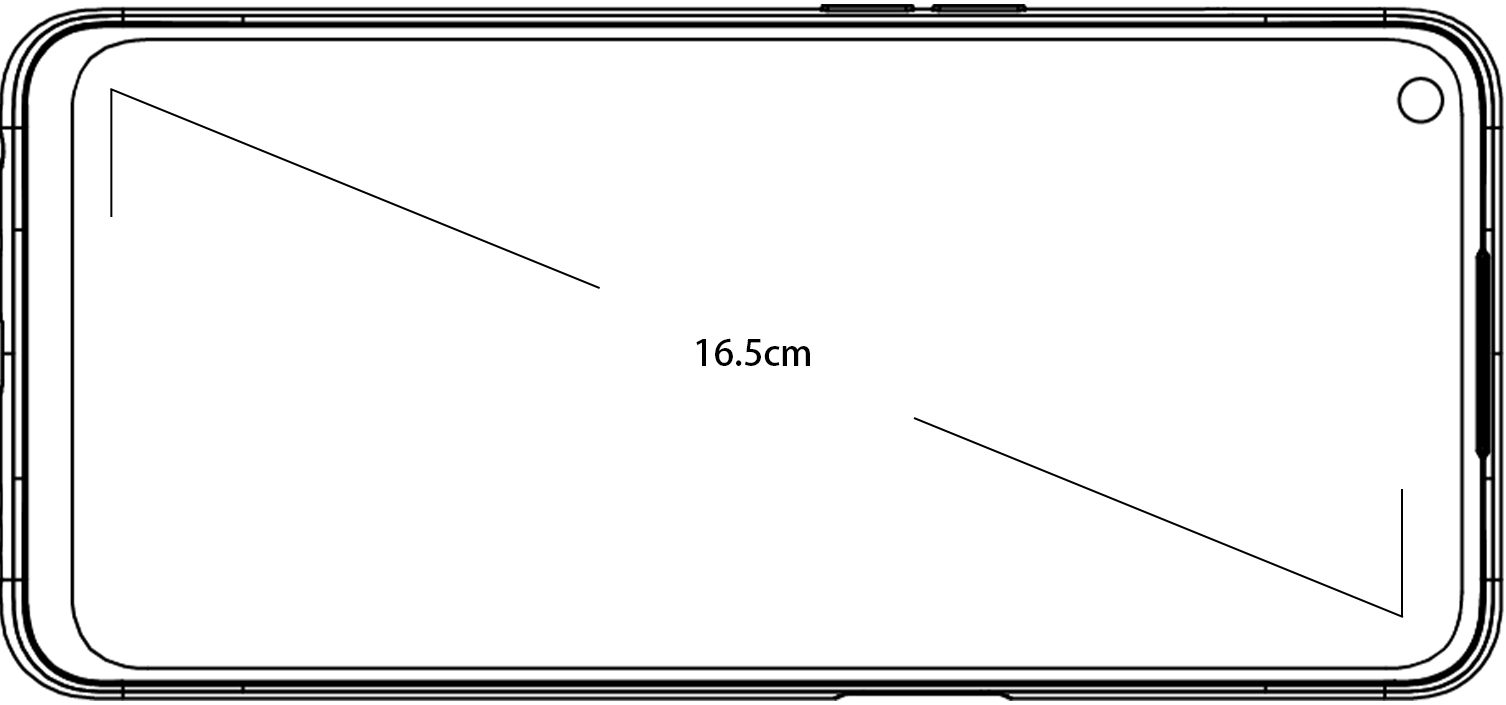

Size: 6.5"(16.5 cm) Screen Ratio: 90.5% Resolution: 2400 x 1080 (FHD+) Refresh Rate: Up to 90Hz Touch Sampling Rate: Up to 180Hz Colour Gamut: 100% DCI-P3 Pixel Density: 405 PPI Contrast Ratio: Static contrast ratio: 1500:1 Brightness: Default value (typical): 480 nits, HBM value (typical): 550 nits Panel: LCD (LTPS)

Camera

Rear 48MP Main Camera: f/1.7; FOV 79°; AF supported 8MP Ultra-wide Angle Camera: f/2.2; FOV 119°; fixed focus 2MP Macro Camera: f/2.4; FOV 88.8°; fixed focus 2MP Mono Camera: f/2.4; FOV 88.8°; fixed focus

Front 16MP (f/2.0); FOV 79.3°; fixed focus

Shooting Mode Rear:
Photo, Video, Night, Expert, Panorama, Portrait, Time-lapse, Slow-motion, Text scanner, Google Lens Front:
Photo, Video, Panorama, Portrait, Night, Time-lapse, Sticker

Image Size Rear:
Maximum size: 6000 x 8000 (48MP) Front:
Maximum size: 3468 x 4624 (16MP)

Video

RearRear Camera: 1080P/720P (30fps)Support EIS, video digital zoom and slow motion

FrontFront Camera: 1080P/720P (30fps)

Chips

Qualcomm^® Snapdragon™ 480 5GCPU Speed: Up to 2.0 GHzCPU Cores: Octa-coreGPU : Adreno™ 619 @650MHz

Battery

4890/5000mAh (Min/Typ)

Fast Charge9V/2A (MAX)

Biometrics

Supports Side Fingerprint and Face Unlock

Sensors

Geomagnetic sensorProximity sensorOptical sensorAccelerometerGravity sensorGyroscope

Cellular Network

SIM 2: Supported
Nano-SIM card* Functions available on the live network depend on the situations of carrier's network and related services deployment.

SIM Card 1 GSM: 850/900/1800/1900 MHz WCDMA: Bands 1/2/4/5/6/8/19 FDD-LTE: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66 TD-LTE: Bands 38/39/40/41 5G NR: n77/78/38/40/41/1/3/5/7/8/20/28

SIM Card 2 GSM: 850/900/1800/1900 MHz WCDMA: Bands 1/2/4/5/6/8/19 FDD-LTE: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66 TD-LTE: Bands 38/39/40/41 5G NR: n77/78/38/40/41/1/3/5/7/8/20/28

Connectivity

WLAN: Wi-Fi 5 (802.11ac), 802.11a/b/g/n/ Fi-Fi 2.4G/5.1G/5.8GWi-Fi Display and Wi-Fi tethering

Bluetooth Version: BT2.1 + EDR, BT5.1, TWS+Bluetooth Audio Codec: SBC, AAC, APTX HD, LDAC USB Interface: USB Type CEarphone Jack: 3.5 mmNFC: Supported

Operating System

ColorOS 11.1 based on Android 11

Location Technology

GNSS: Built-in GPS, A-GPS, BeiDou, GLONASS, and QZSS positioning systems supportedOthers: Wi-Fi positioning, network-based mobile positioning, and electronic compassMaps: Supported

In the box

Phone ×1Charger ×1Earphones ×1USB data cable ×1SIM Ejector Tool ×1Safety Guide ×1Quick Guide ×1Protective case ×1

Additional Remarks

A special technology is applied to conceal the proximity sensor on the upper front of OPPO's smartphone for the whole look of simplicity. It may cause abnormality of proximity function if the film or protector covers the proximity sensor area. Refer to OPPO's official layout of protector and film for details.

Download Layout
