OPPO Reno5

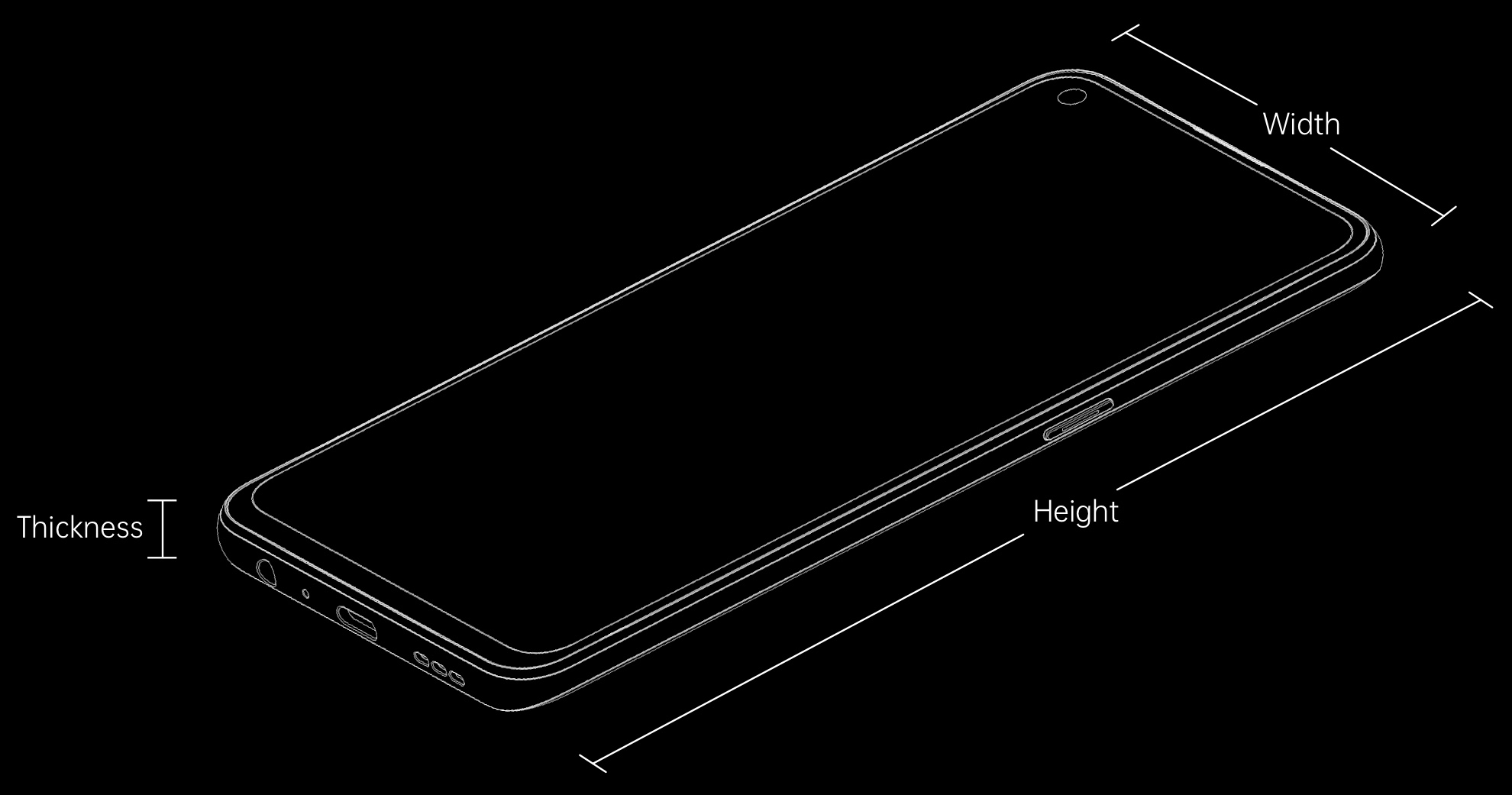

Size and Weight

Height: about 159.1mmWidth: about 73.4mmThickness: about 7.9mmWeight: about 172g(Starry Black, Astral Blue); about 180g(Galactic Silver) * Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Memory

8GB RAM + 128GB ROMExternal Memory: Not supportedUSB OTG: Supported* The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

Size: 6.4"(16.33 cm)Screen Ratio: 91.7%Resolution: 2400 x 1080 (FHD+)Refresh Rate: Maximum 90Hz, Options 90Hz or 60HzTouch Sampling Rate: Maximum 180 HzColour Gamut: Vivid mode 93.28% DCI-P3, 135.13% sRGB; Gentle mode 73.72% DCI-P3, 100% sRGBPixel Density: 410 PPIContrast Ratio: Static maximum 1000000:1 (typical)Brightness: 430 nits (typical); with a maximum of 600 nits in sunlight (typical), and a local peak brightness of 750 nitsPanel: AMOLED

Camera

Rear64MP Main Camera: f/1.7; FOV 80°; closed-loop focus motor8MP Ultra Wide-angle Camera: f/2.2; FOV 119°2MP Macro Camera: f/2.4; FOV 89°2MP Mono Camera: f/2.4; FOV 89°

Front32MP (f/2.4); FOV 85°

Shooting ModeRear: Photo, Video, Panoramic, Portrait, Night, Time-lapse, Sticker, Dual-view Video, Text Scanner, Movie, Expert, Extra HD, Slow motionFront: Photo, Video, Panoramic, Portrait, Night, Time-lapse, Sticker, Dual-view Video

Image SizeRear:
Maximum size: 6936x9248 (64MP)
Normal photo mode:
3468 x 4624 (4:3)
3468 x 3468 (1:1)
2080 x 4624 (full screen)
2608 x 4624 (16:9)Front:
Sensor maximum output size: 6592x5120
Normal photo mode:
4928x6560 (4:3)
4928x4928 (1:1)
2960x6560 (Full frame)
3696x6560 (16:9)

Video

RearRear camera: 4K(30fps),1080P(60fps/30fps),720P(60fps/30fps)Video slo-mo:1080P(120fps),720P(240fps)Video stabilization supports EIS and video zoom

FrontFront camera: Front camera: 1080P/720P 30fps(Default: 1080P(30fps))

Chips

CPU: Qualcomm® Snapdragon™ 765G CPU Speed: 8 cores with a maximum frequency of 2.4 GHZCPU Cores: 8 coresGPU: Adreno™ 620 @625MHz

Battery

DC 7.74V 2100mAh/16.25Wh(Min)DC 7.74V 2150mAh/16.64Wh(Typ)

Fast ChargeSupports 65W SuperVOOC 2.0, SuperVOOC, VOOC 3.0, PD（9V/2A), QC（9V/2A）fast charging protocols

Biometrics

Support Hidden Fingerprint Unlock and Face UnlockSupport fingerprint and facial Payment

Sensors

Geomagnetic sensorProximity sensorOptical sensorAccelerometerGravity sensorGyroscopePedometer

Cellular Network

SIM 2: SupportedSIM Card Type: Nano-SIM card/Nano-USIM card* Functions available on the live network depend on the situations of carrier's network and related services deployment.

SIM Card 12G：GSM: 850/900/1800/1900MHz3G：WCDMA: Bands 1/2/4/5/6/8/194G：FDD-LTE: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/664G：TD-LTE: Bands 38/39/40/415G SA: n1/3/7/28/41/785G NSA: n77/78/38/40/41/1/3/5/7/8/20/28 BlockA&BlockB

SIM Card 22G：GSM: 850/900/1800/1900MHz3G：WCDMA: Bands 1/2/4/5/6/8/194G：FDD-LTE: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/664G：TD-LTE: Bands 38/39/40/41

Connectivity

WLANWi-Fi 5（802.11ac）、802.11a/b/g/n/; WLAN 2.4G/WLAN 5.1G/WLAN 5.8G; Supports Wi-Fi Display and Wi-Fi tethering

Bluetooth Version: Bluetooth 5.1Bluetooth Audio Codec: SBC/AAC/APTX/APTX HD/LDAC HD audioUSB Interface: USB Type CEarphone Jack: 3.5mmNFC: Supported; Supports Android Beam, HCE, and UICC

Operating System

ColorOS 11.1 based on Android 11

Location Technology

GNSS: Support A-GPS, BeiDou Navigation Satellite System, GLONASS, Galileo positioning systems, and Quasi-Zenith Satellite System (QZSS)Frequency Antenna: Not supportedOthers: Satellite positioning: GPS, BeiDou Navigation Satellite System, GLONASS, Galileo positioning systems, and Quasi-Zenith Satellite System (QZSS)Other positioning methods: A-GPS, Wi-Fi, mobile network, and electronic compassMaps: Support Google Map and other third-party map apps

In the box

Phone x1Earphones x1USB Cable x 1Charger x1SIM Ejector Tool x1Protective Case x1Quick Start Guide x 1Safety Guide (with a warranty card) x 1

Additional Remarks

A special technology is applied to conceal the proximity sensor on the upper front of OPPO's smartphone for the whole look of simplicity. It may cause abnormality of proximity function if the film or protector covers the proximity sensor area. Refer to OPPO's official layout of protector and film for details.

Download Layout
